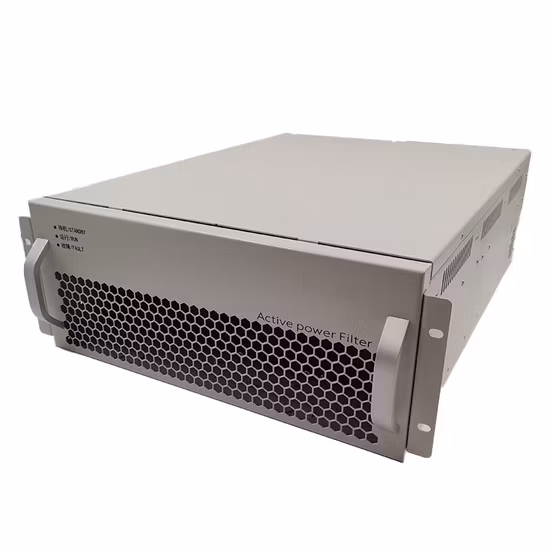

3p4w Active Harmonic Filter Reactive Power Compensation

3p4w Active Harmonic Filter Reactive Power Compensation

Package Size 60.00cm * 50.00cm * 33.00cm Package Gross Weight 5.000kg Active harmonic filters (AHFs/APF) are typically s
Basic Info.
Model NO. AHF049
Form All- packaged Type
Operation Voltage Low Voltage
Size 486*88*504 mm
Application Range Power Factor Correction
Shell Material Aluminum-Zinc Coated Case
Shell Protection Grade IP30
Brand Huakun
Harmonic Compensation Range 2~50th Harmonic Order
Usage Harmonic Correciton ,Reactive Var Compensation
Harmonic Compensation Efficienc > 97%
Power Grid Structure 3p3w/3p4w
Noise Level <65dB
Mounting Type Wall Mounted/Rack Mounted
Transport Package Wooden Box
Specification 682*567*277cm
Trademark Huakun
Origin Shanghai, China
HS Code 8543709990
Production Capacity 20000PCS/Year
Packaging & Delivery
Package Size 60.00cm * 50.00cm * 33.00cm Package Gross Weight 5.000kg
Product Description

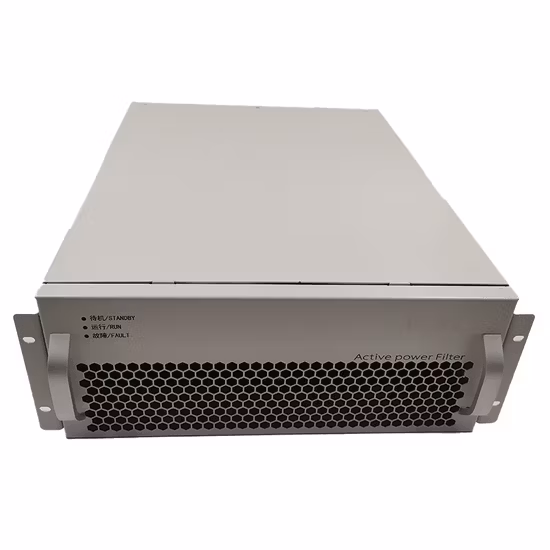

3p4w Active Harmonic Filter Reactive Power Compensation

3p4w Active Harmonic Filter Reactive Power Compensation


Active harmonic filters (AHFs/APF) are typically stand-alone devices that reduce the high levels of harmonics produced by energy efficient non-linear loads.They work by injecting harmonics into the electrical system in equal and opposite measure to the existing system harmonics.As previously mentioned, harmonic filters are used to eliminate harmonic distortion caused by excess currents in and out of appliances. It can prevent large quantities of harmonics from causing damage to equipment, downtime of operation, and preventing an increase in operating costs.

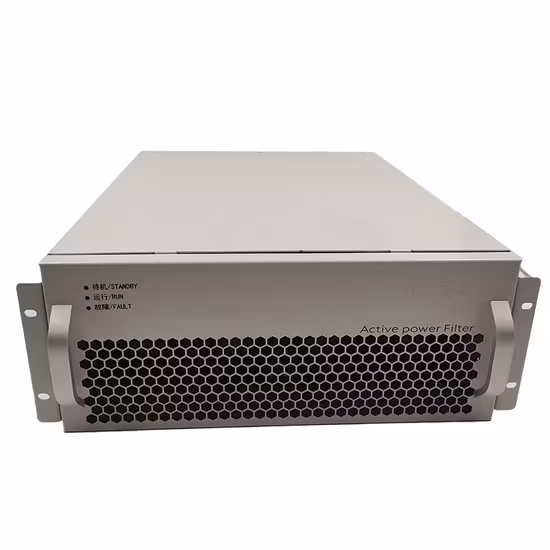

3p4w Active Harmonic Filter Reactive Power Compensation

The Active power filter monitors the load current real-time through the external current transformer CT, and extracts the harmonic component of the load current through the internal DSP computing, then sends it through the PWM signal to the internal IGBT, the inverter produces a current equal to the load harmonic and opposite to the harmonic direction and injects the current into the grid to compensate the harmonic current realizing the function of harmonic control.

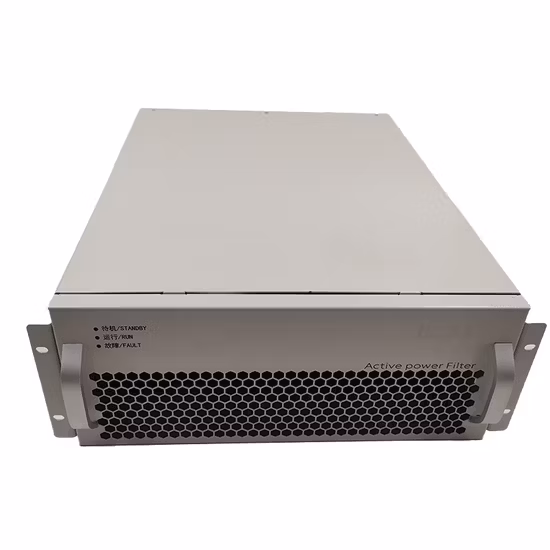

3p4w Active Harmonic Filter Reactive Power Compensation

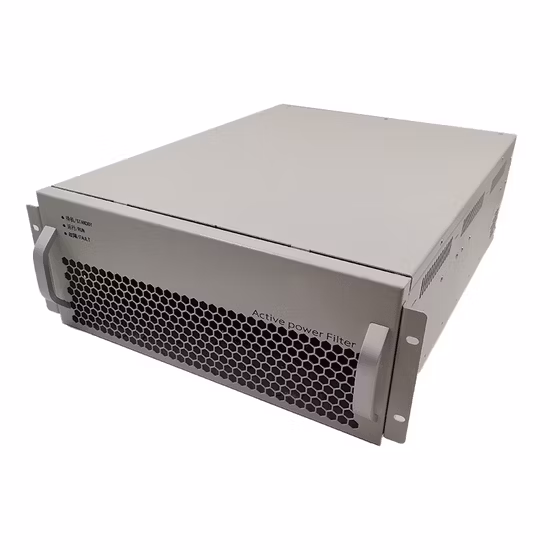

3p4w Active Harmonic Filter Reactive Power Compensation

System parameters

Rated input wire voltage

3 8 0 V(-1 5%~+2 0%)

Grid frequency

5 0 / 6 0 H z ( r a n g e : 4 5 H z~6 2 H z)

Number of parallel machines

1 ~ 1 0 s e t s

Overall efficiency

≥9 7%

Grid structure

T h r e e - p h a s e t h r e e - w i r e / t h r e e - p h a s e f o u r - w i r e

Current transformer

1 5 0/5~1 0 0 0 0/5

Circuit topology

T r i - l e v e l

P e r f o r m a n c e i n d e x
Response time<1 5 m s
Scope of compensationF r o m - 1 t o 1 , c a p a c i t i v e a n d i n d u c t i v e c o n t i n u i t y i s a d j u s t a b l e
Cooling modeI n t e l l i g e n t a i r c o o l i n g
Noise index<5 6 d B
