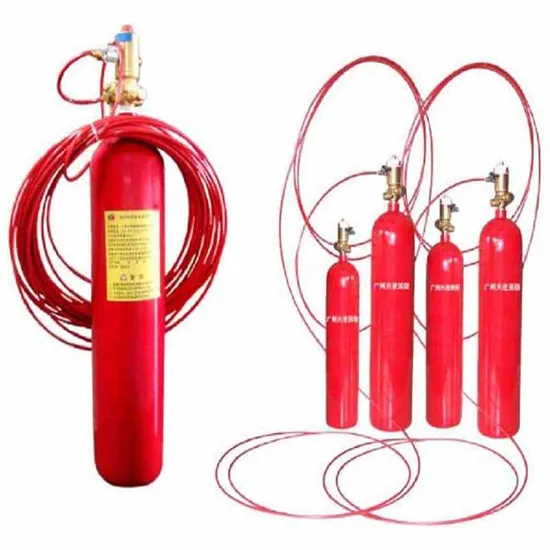

Fire Detection Tube Extinguisher for Electric Equipments

Basic Info.

Model NO.	WZ-Q/T-EZ6-XJ60, WZ-Q/T-EJ42-XJ60, WZ-Q/T-QZ3-XJ6
Specification	FM200 clean agent / CO2
Trademark	Xingjin / OEM
Origin	Guangzhou, Guangdong, China
Production Capacity	300 Sets Per Week

Product Description

Fire Detection Tube Extinguisher For Electric Equipments
DescriptionThis device can detect fire situation by a pressurized fire trace tube, which connecting to an extinguishing agent storage. Both HFC-227ea/FM200 or Carbon Dioxide can be used as extinguishing agent for this device.Usually, it would be designed to two modes of discharge----direct release and indirect release. When fire breaks out, the fire trace will activate the device, and spray extinguishing agent through the fire trace tube itself, we call it direct release. And another mode, the fire trace tube will detect fire, and extinguishing agent is discharge through a pre-installed pipe and nozzle quickly, we call it indirect release.Fire trace extinguishing device is a good device with covering the shortage of fixed device. Because it can be used in a small space or area of special environment which cannot install pipeline, nozzles, or fire alarm system.Parameters

NO.	Type of Device	Direct Type Fire Detecting Tube CO2 Fire Suppression Device	Indirect Type Fire Detecting Tube CO2 Fire Suppression Device	Direct Type Fire Detecting Tube FM200 Fire Suppression Device
1	Device model	WZ-Q/T-EZ6-XJ60	WZ-Q/T-EJ42-XJ60	WZ-Q/T-QZ3-XJ60
2	Storage Pressure(20ºC)	5.17Mpa	5.17Mpa	2.5Mpa
3	Max. Working Pressure	12.1Mpa	12.1Mpa	4.2Mpa
4	Min. Agent Needed for A Unit	2.5kg/m³	1.5kg/m³	0.7kg/m³
5	Max Agent Capacity	6kg	42kg	3kg
6	Max. Length of Fire Tube	25m	25m	20m
7	Max. Length of Release Tube	--	12m	--
8	Max. Filling Rate	0.6kg/L	0.6kg/L	1.12kg/L
9	Working temperature	0ºC~49ºC	0ºC~49ºC	0ºC~50ºC

ComponentsThis extinguishing device needs no electrical elements and pipe fittings to consist of a system. It can be a fire suppression system itself.The direct type fire detecting tube fire suppression system is consist of a cylinder, an at most 25m long fire detecting tube, a container valve and two kinds of agents-- co2 and fm200.The indirect type fire detecting tube fire suppression system has the same components as the direct type except a release tube added. In this system, the fire detecting tube is used for just detecting function, so it needs a release tube together, however, for the direct type, the fire detecting tube can be used for both detecting and releasing.

Advantages

The fire detecting tube fire suppression device has the following advantages:1. Convenient installation and transportation. Because this system combines fire fighting and alarm function together, and no needs to match electrical elements and pipe fittings, so after fixing the cylinder on a place, all left to do is fixing the detecting tube around a potential source of fire. 2. Non-electric start mode. It doesn't need the power to activate the system. This system's work principle is using its own storage pressure instead of relying on the outside force activating. When the detecting tube is broken by the fire, the agent will discharge. 3. Little occupation of space. This system is suitable for protecting a system, like telecommunication system, rather than a protected zone. The cylinder fixes on the outer cabinet, and will not occupy many places. PackagesWe always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.

Company IntroductionGuangzhou Xingjin Fire Equipment Co., Ltd., surrounded by convenient transportation and beautiful environment, is located in Guangzhou, which plays an important role in communication between China and the world. We are a manufacturer, and we devote ourselves to the study and development of HFC-227ea (FM200) productions with our professional and mature team including the program design team, the skillful installation team, the quality detecting team and the after-sell service team. Nowadays, our popular fm200 products are widely used, such as the pipe network FM200 fire suppression system, the cabinet type FM200 fire suppression system, the automatic FM200 fire extinguisher(ceiling mounted style), the fire detecting tube suppression system and automatic fire suppression tube. As a result of high-quality products and services as well as the good reputation, our company is well-received by the customers in China.
Part Cases Show• In Sichuan province, the project cases are Bei Xin Run Yuan, Dong Lu Yi Jing, Yuewang Tower, Times Flower City, Shude Middle School, Wal - Mart near ASCB, New Hope Building, Xin Yi Zi Jin City, Tobacco Building, etc.• In Guangdong province, the project cases are GAC Group, 10086 in Shenzhen, Haizhu Industrial and Commercial Bureau, Wanbao Air Controller, Yingfu Building in Shenzhen, Bank of Communication in Zhanjiang, Lijin Square in Zhanjiang, Zhanjiang Broadcasting and TV Station, etc.• In Shandong province, the project cases are Lushang Office Building, Lushang Marketing Center, etc.• Part in Sichuan
• Part in Guangdong
• Part in Foreign Country

Why Choose Us• 5 years quality guarantee• Xingjin is running in a high efficiency management system• Advanced equipments & professional engineers to promise all products are quite satisfactory.• We provide 8×6 hrs technical support and service.After-Sale Service • We have an efficient sales and after sales team to promise slove all client's question in time.• We provide 8×6 hrs technical support and service.FAQQ1: Are you a manufacturer or a trading company?A1: We are a manufacturer. Q2: Is OEM products available?A2: Yes, we welcome your own design and drawing. Q3: Where is your factory? Can I visit it?A3: Our factory locates in Shilou, Panyu, Guangzhou, Guangdong, China. Of course yes. We always welcome and wait for your visit. Q4: How can I get to your factory?A4: Because of the convenient transportation here, you can take a taxi or come here by subway. If you come here by subway, you need to take the line four and get off at Shiqi station. Then walk out the station for taking No. 126 bus and get off at Yuexi station.
